Ringlock Set 4 Bay 12.3m Single level

Ringlock Scaffolding

SAVE HIRE COSTS!!

Complies with AS/NZS 1576

This is a very popular commercial style scaffolding. It is modular, versatile and very fast and easy to erect.

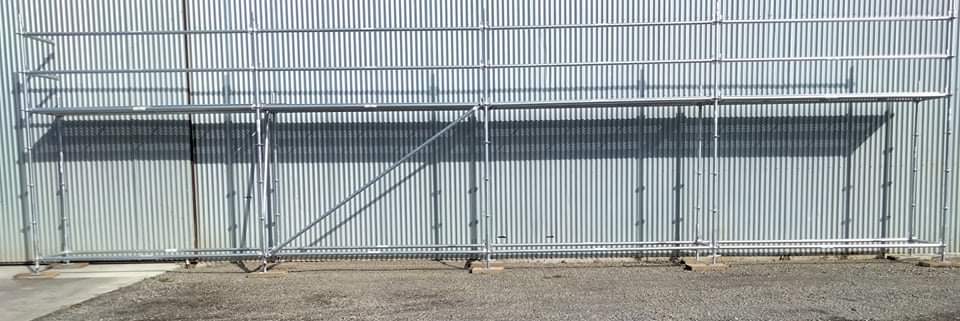

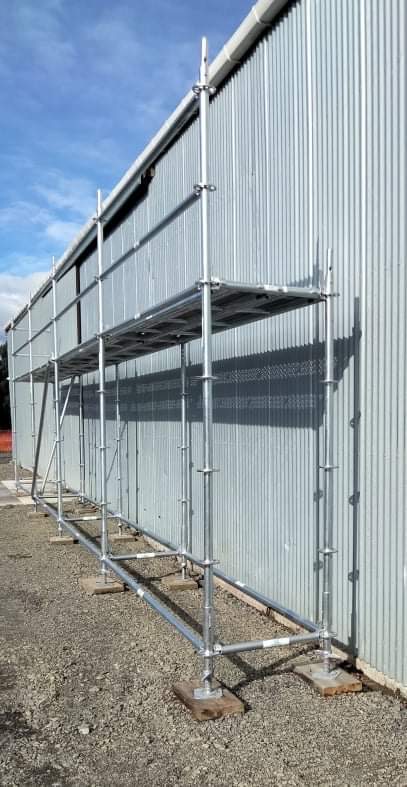

This set is for 4 bays at 3.07m Long each and up to 2.4m high (Platform Height).
0.73m wide

Medium Duty 3.0m bays rated at 560kg per bay

The decking height is fully adjustable.

This set consists of the following:

10 x Adjustable Base Plate Jacks 38x600mm Hollow
10 x Starter Collars 355mm
5 x 2.0m Standards
5 x 3.0m Standards
12 x 0.73m Ledgers
16 x 3.07m Ledgers
8 x 3.07m 320mm Steel Platforms
1 x diagonal braces 2.0×3.07m
1 x diagonal braces 2.0×0.73m

We can also do this package in 1.09m wide
